Small Flat Sheet Polishing Machine

This Small-Scale Flat Surface Polishing Machine is designed for polishing and grinding the flat surfaces of stainless steel sheets, non-ferrous metals, and non-metallic components. It is especially suitable for removing burrs, flash, edges, and oxide layers from components produced by stamping, die-casting, or casting processes. The machine is equipped with automatic left-right swinging and front-back grinding mechanisms, along with an electric vertical adjustment system (150mm stroke) to accommodate varying wheel sizes. A dust suction port is integrated within the wheel guard to reduce environmental pollution. The platform supports workpieces up to 850mm height, and allows 1250mm front-back movement, secured by a clamping plate.

Small Flat Sheet Polishing Machine XYD-SPB

Consult

Introduction

1. Product Overview

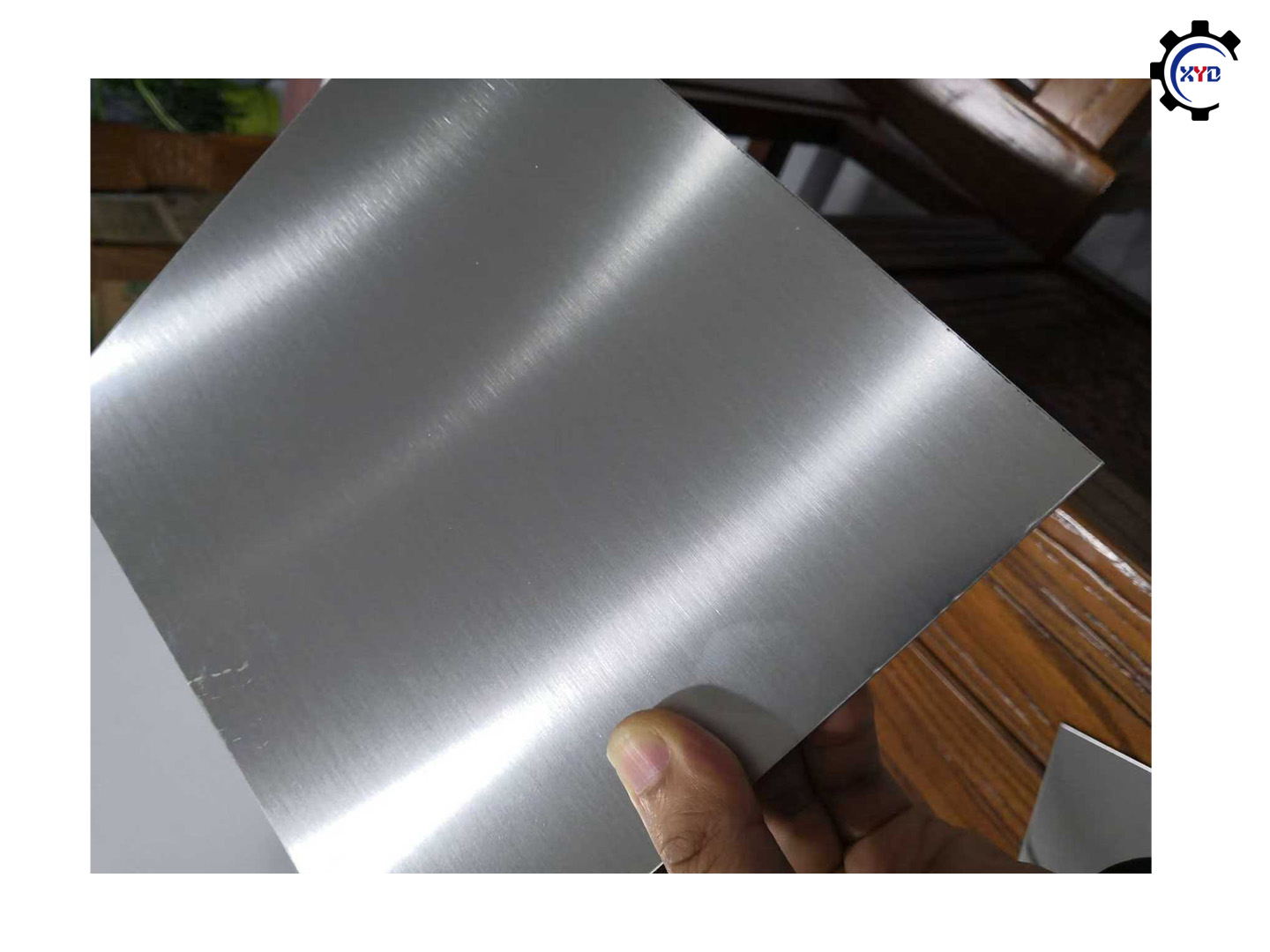

This Small-Scale Flat Surface Polishing Machine is designed for polishing and grinding the flat surfaces of stainless steel sheets, non-ferrous metals, and non-metallic components. It is especially suitable for removing burrs, flash, edges, and oxide layers from components produced by stamping, die-casting, or casting processes.

The machine is equipped with automatic left-right swinging and front-back grinding mechanisms, along with an electric vertical adjustment system (150mm stroke) to accommodate varying wheel sizes. A dust suction port is integrated within the wheel guard to reduce environmental pollution. The platform supports workpieces up to 850mm height, and allows 1250mm front-back movement, secured by a clamping plate.

2. Key Features

Multi-directional Automation: Swinging (L/R) and grinding (F/B) movements are automatic.
Height Adjustable Grinding Head: 150mm vertical movement adapts to various wheel diameters.
Efficient Deburring: Ideal for post-processing of cast, stamped, or die-cast components.
Dust Control Design: Adjustable suction port built into the polishing head cover.
Secure Clamping: Equipped with a press plate for workpiece stability during operation.

3. Technical Specifications

Parameter	Specification
Dimensions (L×W×H)	2600 × 1500 × 2250 mm
Main Motor	11 kW × 1 unit
Traveling Motor	1.5 kW, Gear Ratio 1:80 × 1 unit
Swing Motor	1.5 kW, Gear Ratio 1:20 × 1 unit
Spindle Speed	1800 rpm
Polishing Wheel Ø	250–300 mm (Bore: 50 mm)
Max Wheel Width	850 mm
Polishing Line Speed	22.24 m/s
Vertical Adjustment Range	150 mm
Platform Travel (Front/Back)	1250 mm
Max Workpiece Height	850 mm (adjustable via shim)
Total Power	Approx. 15 kW
