Dished end polishing machine

The 1-meter CNC head polishing machine is engineered for precise surface finishing of elliptical heads, concave ends, and stainless steel components. With servo-driven automation, constant pressure polishing, and optional dust collection, it provides a highly efficient, safe, and environmentally compliant solution. This fully automatic machine is ideal for small to medium-sized work pieces in industries such as pressure vessels, precision metal processing, and pharmaceutical manufacturing.

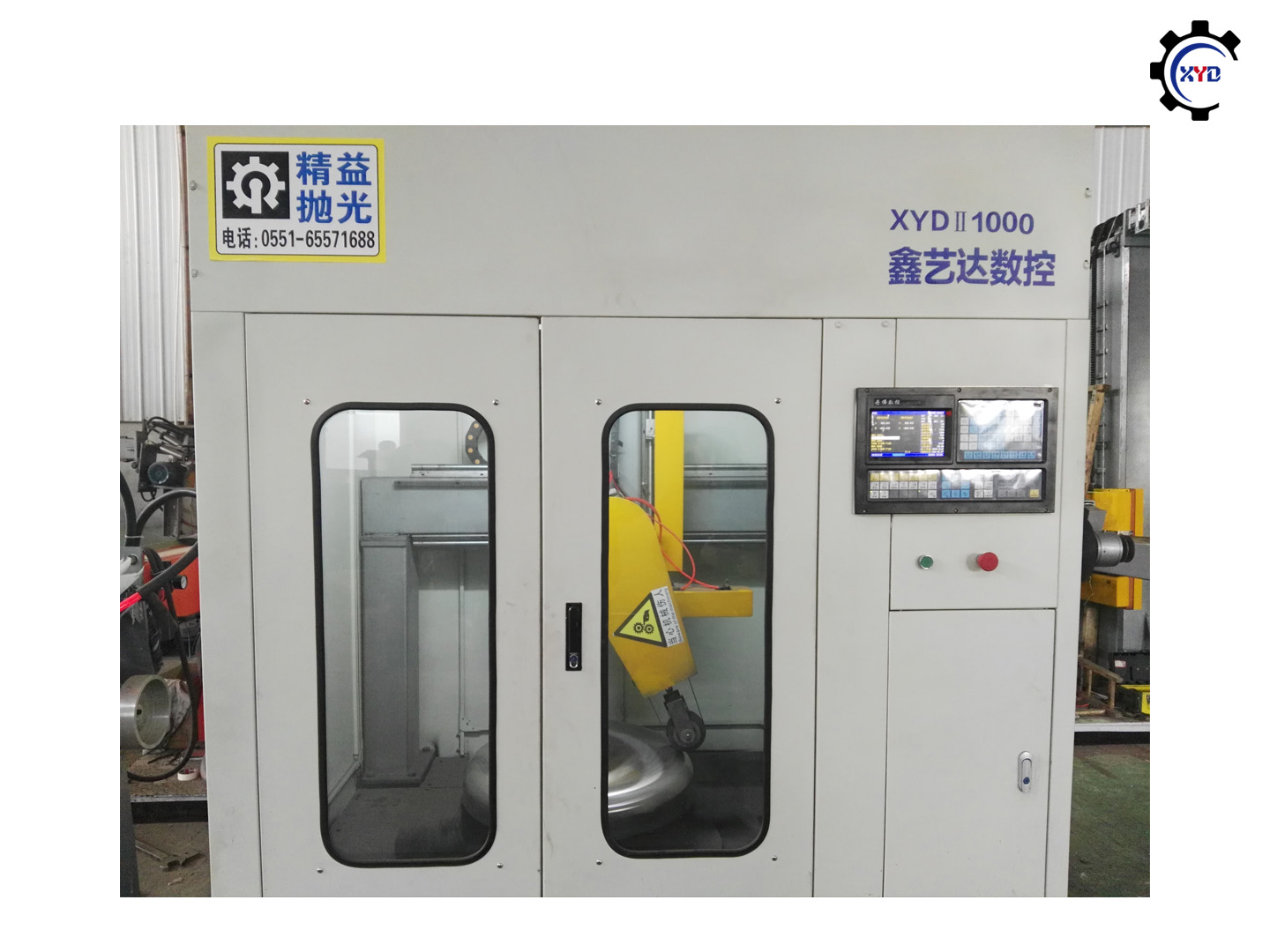

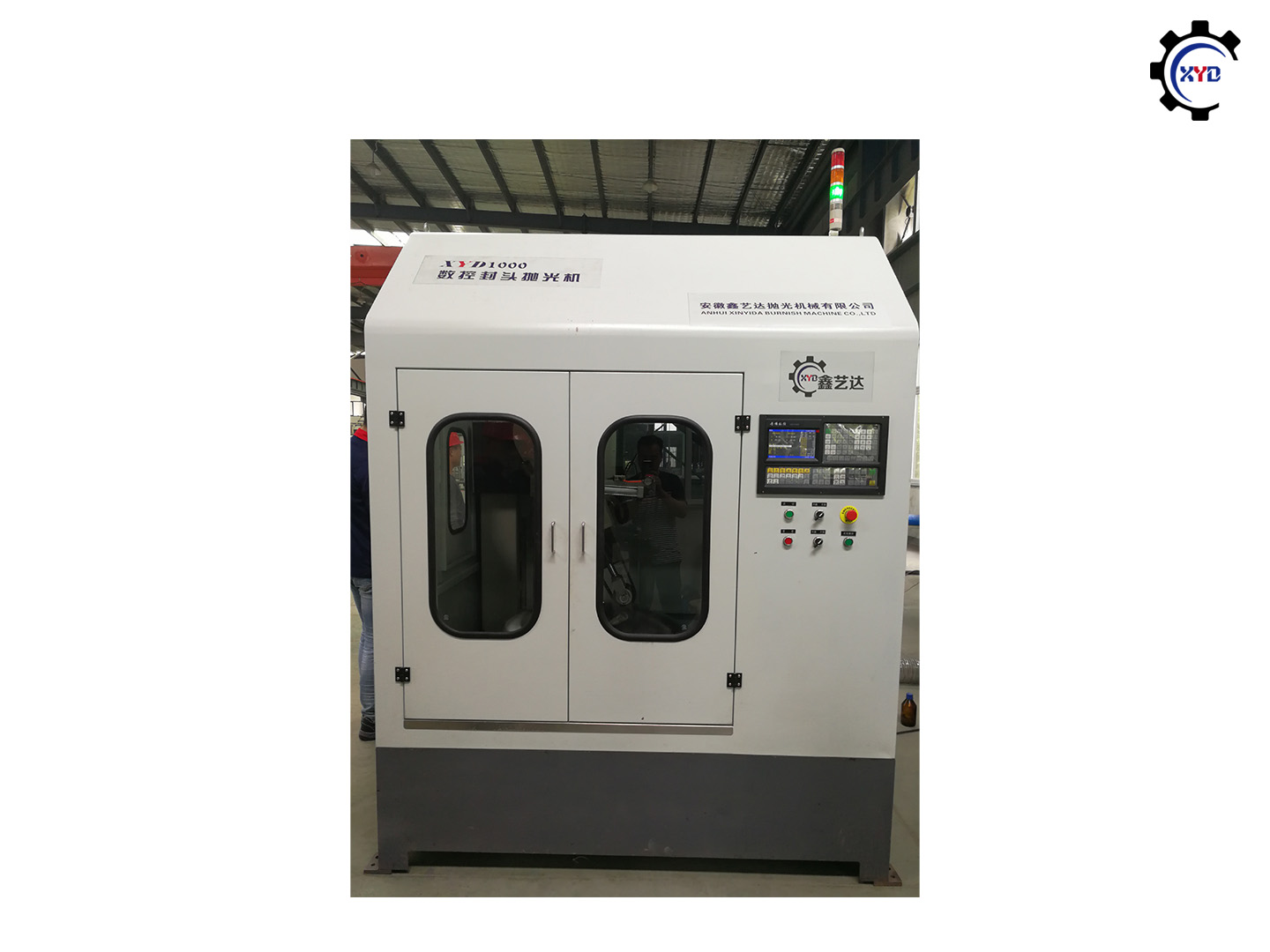

1M CNC dished end polishing machine XYD-CNC-1000

Consult

Introduction
Video

1. Product Overview

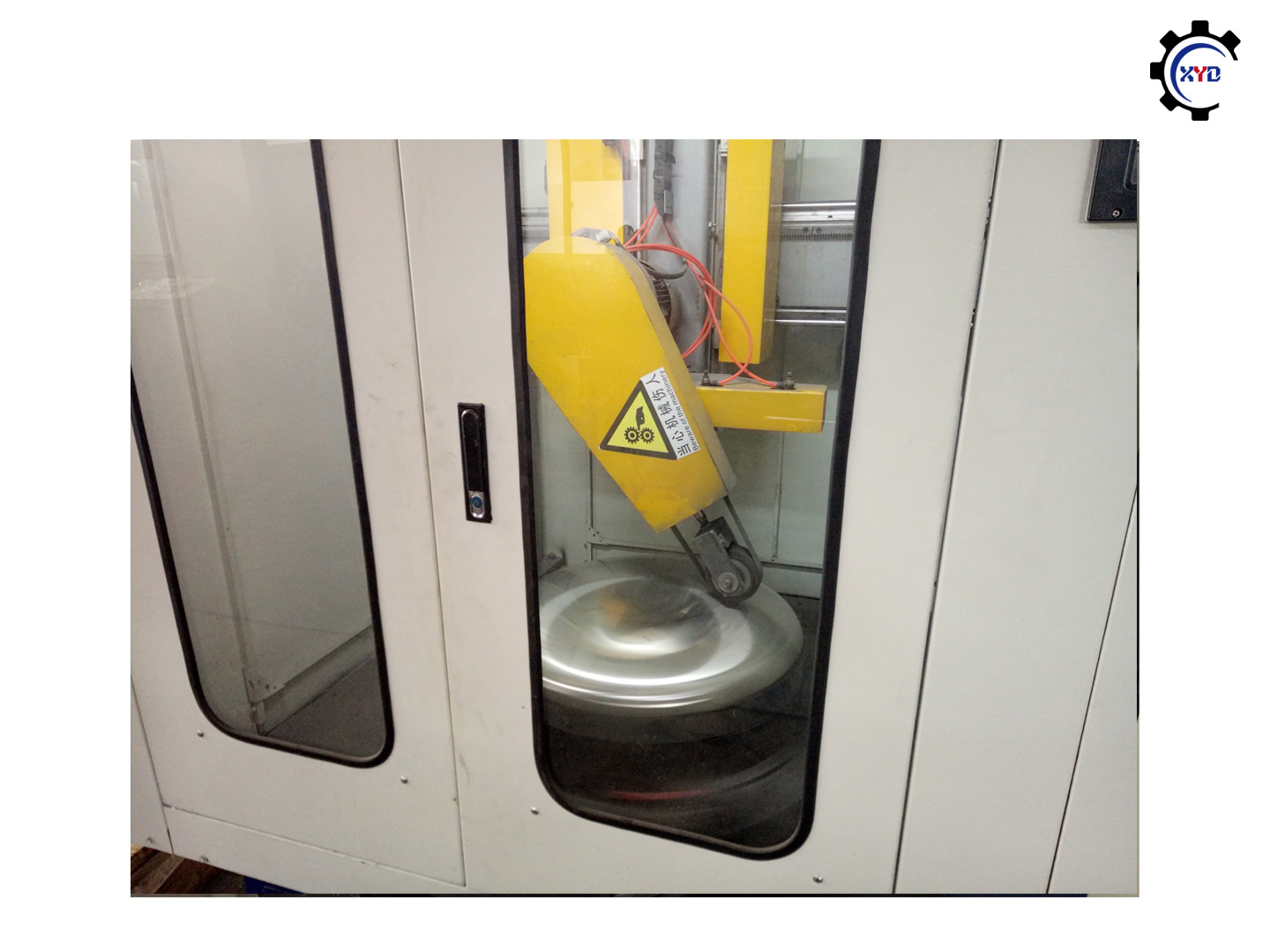

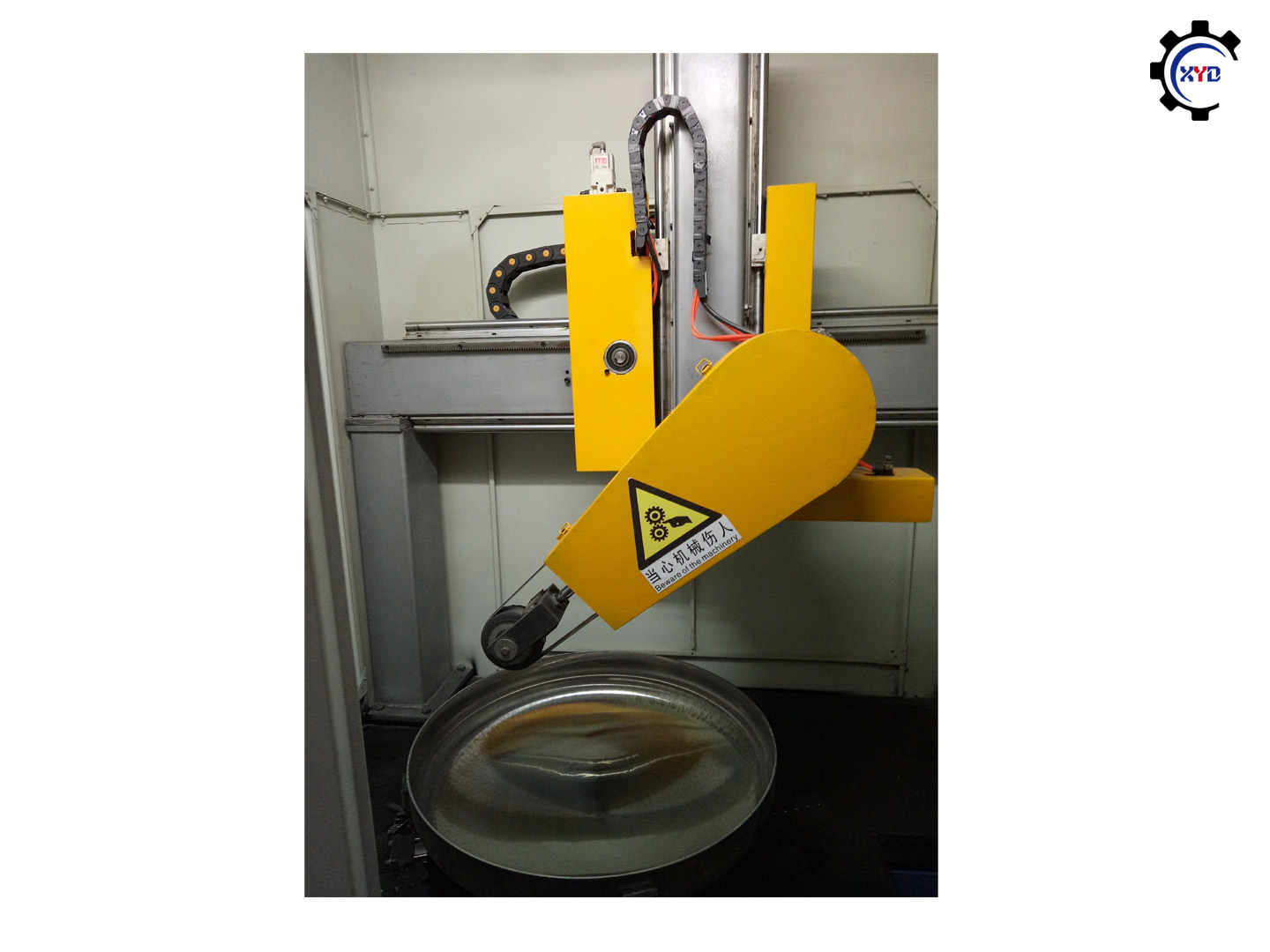

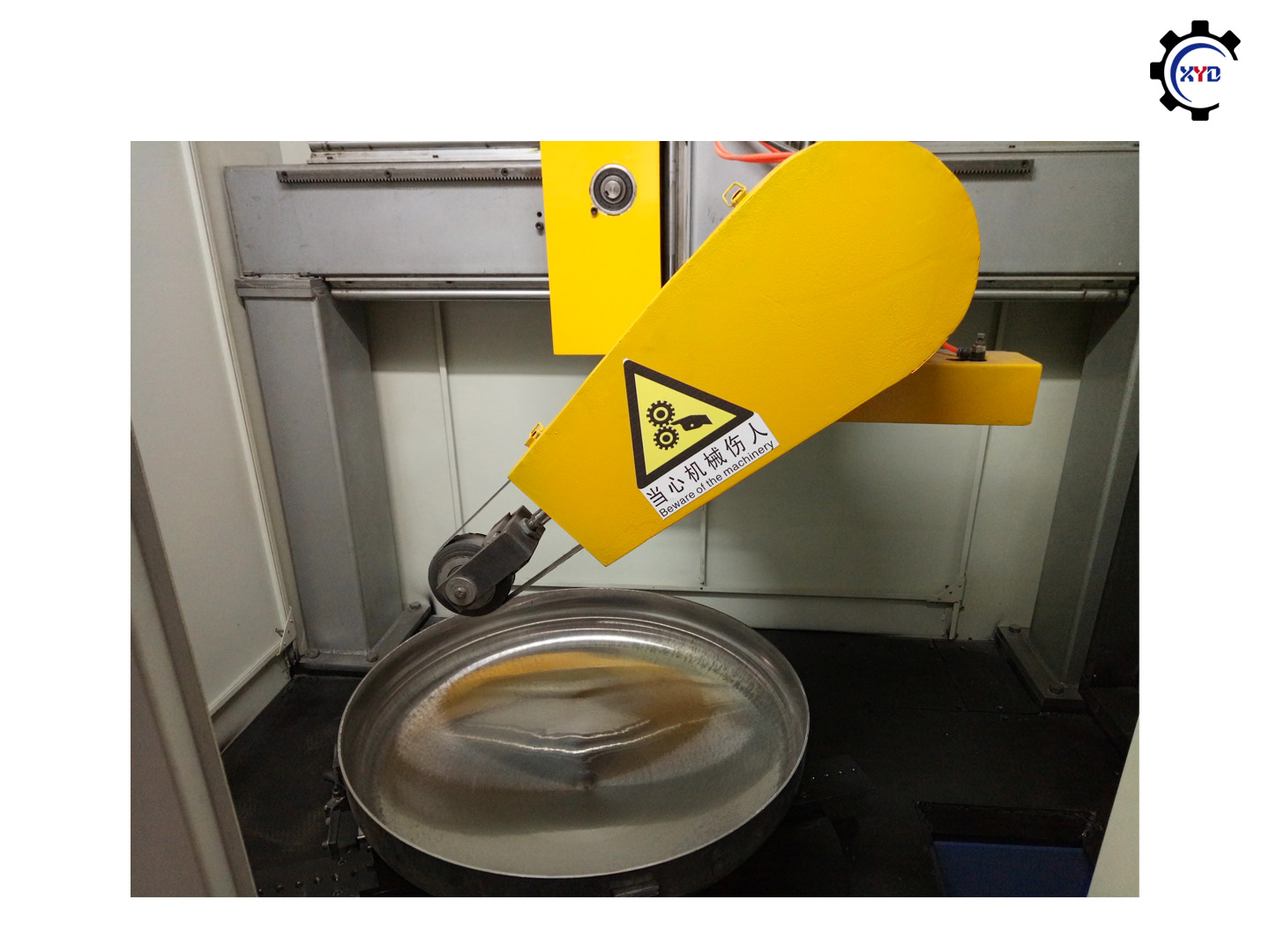

The 1-meter CNC dished end polishing machine is engineered for precise surface finishing of elliptical heads, concave ends, and stainless steel components. With servo-driven automation, constant pressure polishing, and optional dust collection, it provides a highly efficient, safe, and environmentally compliant solution. This fully automatic machine is ideal for small to medium-sized workpieces in industries such as pressure vessels, precision metal processing, and pharmaceutical manufacturing.

2. Key Features

Feature	Advantage
Servo Automatic Control	One-touch operation, high response speed, stable system
Intelligent Constant Pressure	Imported pressure sensor for real-time adjustment and consistent polishing force
Pneumatic Auto-Centering Clamping	Rapid positioning with minimal manual input
Fully Enclosed + Visual Window	Ensures safety, dust-proof operation, and real-time monitoring
Optional Dust Collection	Complies with environmental standards, ideal for cleanroom needs

3. Technical Specifications

Item	Value
Model	XYD-CNC (JY-CNC)
CNC System	Siemens / Huazhong / Delta
Working Mode	Full-Automatic
Travel Distance	1200mm (max polishing diameter)
Polishing Motor	4kW or 5.5kW (Brand: WANNA)
Inverter Brand	Zhongchen / DELTA / Danfoss
Electrical Components	Schneider Electric
Polishing Options	Interchangeable belts and wheels
Spindle Speed	2800 RPM
Polishing Efficiency	10–12㎡/h (up to 15㎡/h)
Workpiece Size	Elliptical ends 400–2000mm dia., height up to 800mm

4. Working Range & Applications

Supported Workpieces:
- Elliptical ends, outer and inner concave surfaces
- Matte, glossy, and mirror finish available
- Custom weight-bearing options
Industry Applications:
- Polishing of stainless steel pressure vessels
- Food and pharmaceutical-grade surface finishing
- Precision metal component polishing
- Smoothing of welds in chemical equipment
