Flat Sheet Metal Brushing Machine

This Flat Sheet Brushing Machine is specially designed for surface grinding and brushing of flat metal plates such as stainless steel, aluminum, and carbon steel. It uses abrasive belt grinding as the primary method and incorporates a PLC servo control system to set plate width, length, and grinding position, ensuring automatic and consistent surface treatment. It is widely used in metal decoration, kitchenware, elevators, doors, and transportation components.

Flat Sheet Metal Brushing Machine XYD-PB

Consult

Introduction
Video

1. Product Overview

This Flat Sheet Brushing Machine is specially designed for surface grinding and brushing of flat metal plates such as stainless steel, aluminum, and carbon steel. It uses abrasive belt grinding as the primary method and incorporates a PLC servo control system to set plate width, length, and grinding position, ensuring automatic and consistent surface treatment.

It is widely used in metal decoration, kitchenware, elevators, doors, and transportation components.

2. Key Features

Variable Frequency Grinding Head
Adjustable speed for high grinding efficiency.
PLC + Servo Control System
Automatically controls grinding area for high precision.
Multiple Grit Capability (80–400 grit)

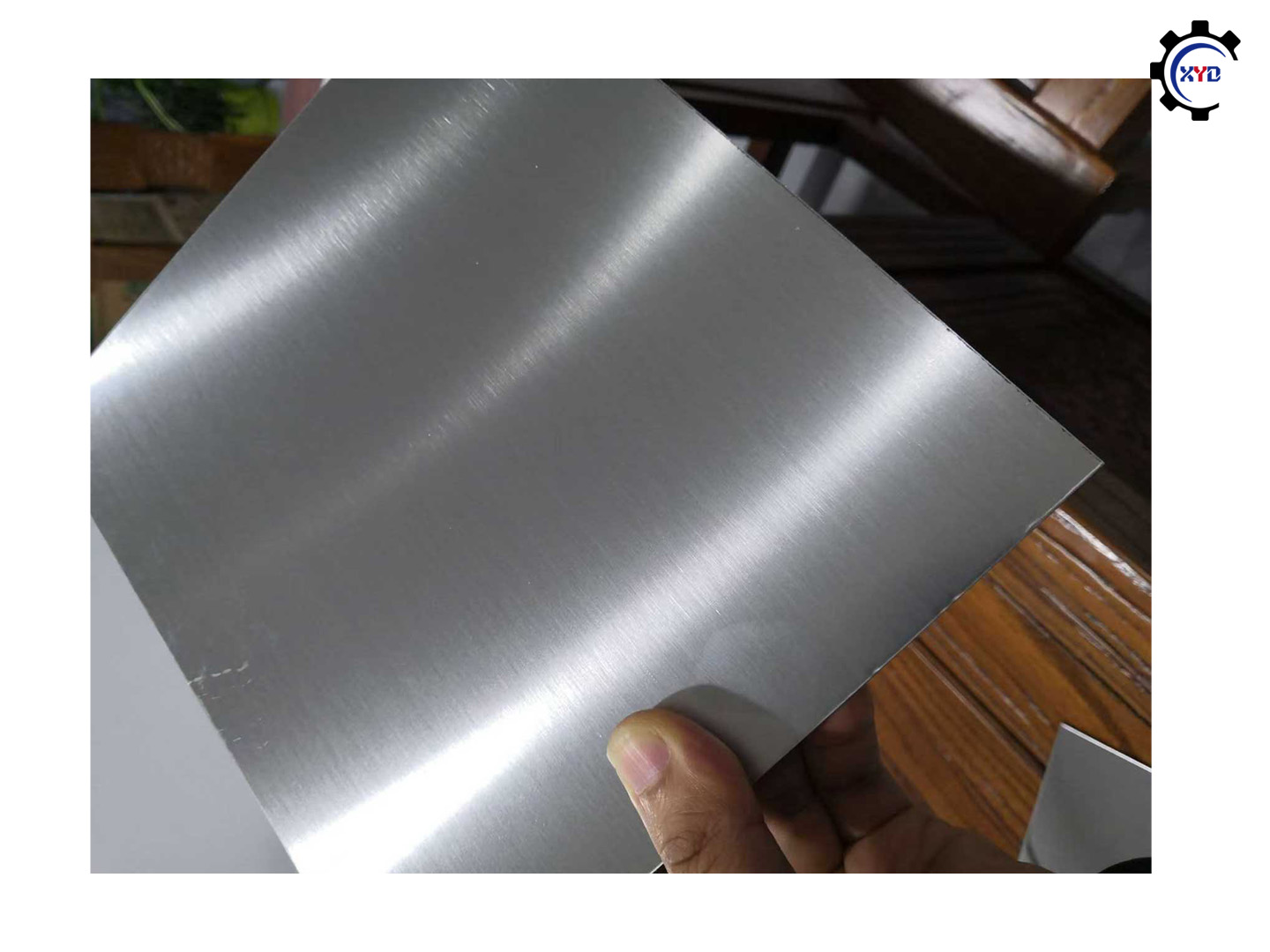

Gradual polishing for consistent brushed or matte finish.
Pneumatic Floating Grinding Head
Ensures close contact with uneven plates; suitable for continuous operation.
Customizable Dimensions
Processing range can be tailored to user’s sheet sizes.

3. Technical Specifications

Category	Specification
Total Power	Approx. 19 kW
Machine Weight	Approx. 1.7 Tons
Machine Dimensions	3665 × 1810 × 1523 mm
Max Workpiece Size	Width ≤1500mm, Length ≤6000mm, Thickness 3–10mm
Polishing Speed	240 mm/min
Head Travel Speed	0–28 m/min
Carriage Travel Speed	0–6 m/min (VFD controlled)
Grinding Head Control	Pneumatic floating + Abrasive belt
Belt Size	160 × 8000 mm
Surface Roughness	Ra ≤ 0.6μm
Productivity	Approx. 8㎡/hour
