Reduction furnace CNC polishing machine

Widely used in medical, chemical, environmental protection, purification equipment covered with heat preservation materials, such as not suitable for horizontal rotation of the reduction furnace workpiece internal polishing using

Consult

Introduction
Video

1. Product Overview

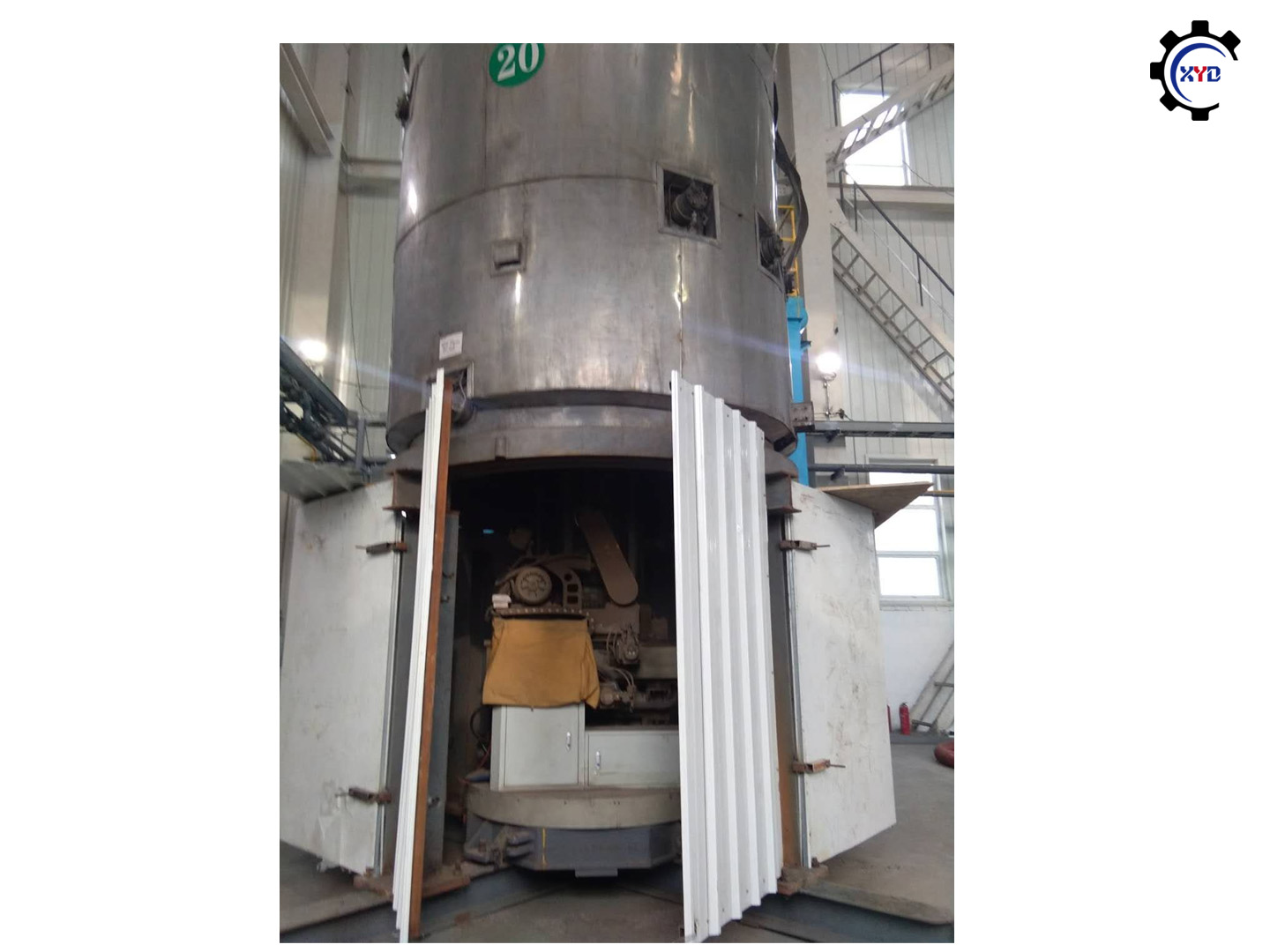

The XINYIDA vertical vessel inner wall polishing system is engineered to address the challenges of polishing large, upright pressure vessels and reaction tanks that cannot be horizontally placed. Designed for workpieces φ1500–3500mm × up to 4000mm high, the machine features a dual servo polishing head, intelligent constant-pressure control, and pneumatic auto-centering, ensuring precision, safety, and 30%+ efficiency boost. It is ideal for pharmaceutical, chemical, and environmental equipment applications.

2. Product Features

Feature	Advantage Description

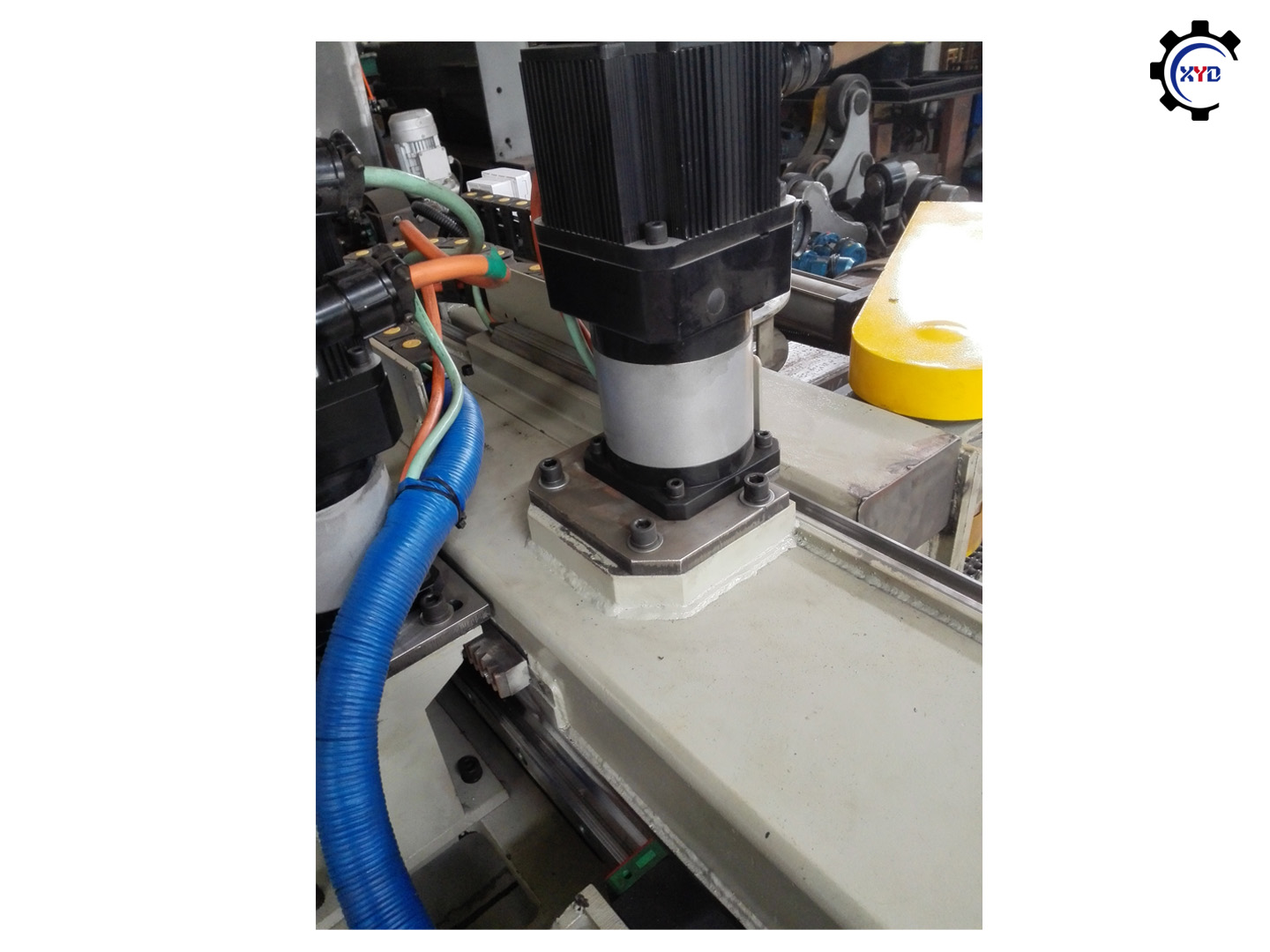

Dual Servo Polishing Head	Two heads work simultaneously for 30%+ efficiency boost; single-click start/stop
Constant Pressure System	Imported sensors maintain polishing pressure automatically with zero manual control
Pneumatic Centering Clamp	Auto-aligns the vessel within ±0.5mm accuracy, increasing clamping speed by 50%
Full Enclosed Chamber	Transparent window for real-time monitoring; optional dust collection system available

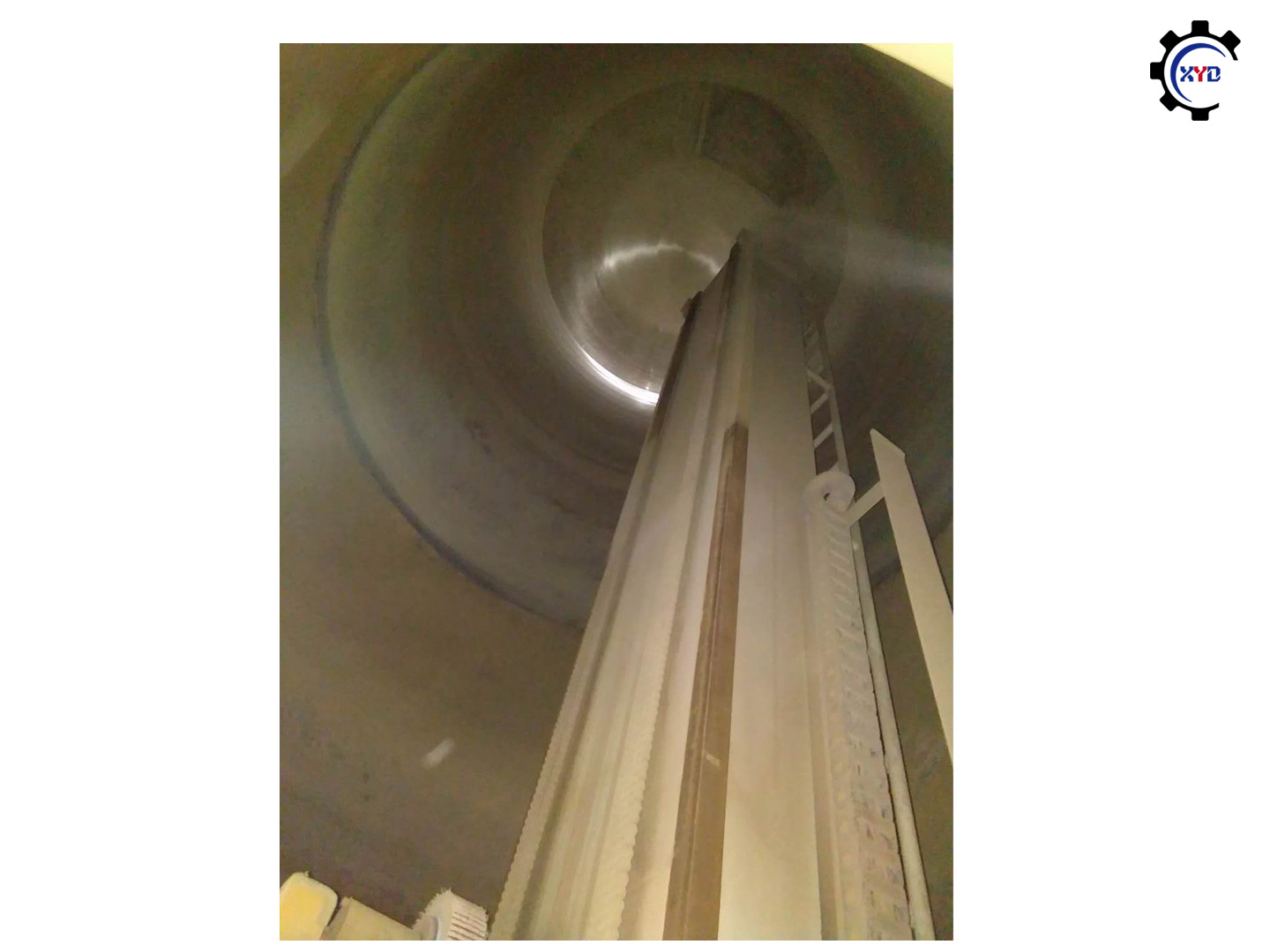

Column Rotating System	Workpiece stays static; rotating column ensures 360° polishing coverage

3. Technical Specifications

Parameter	Specification

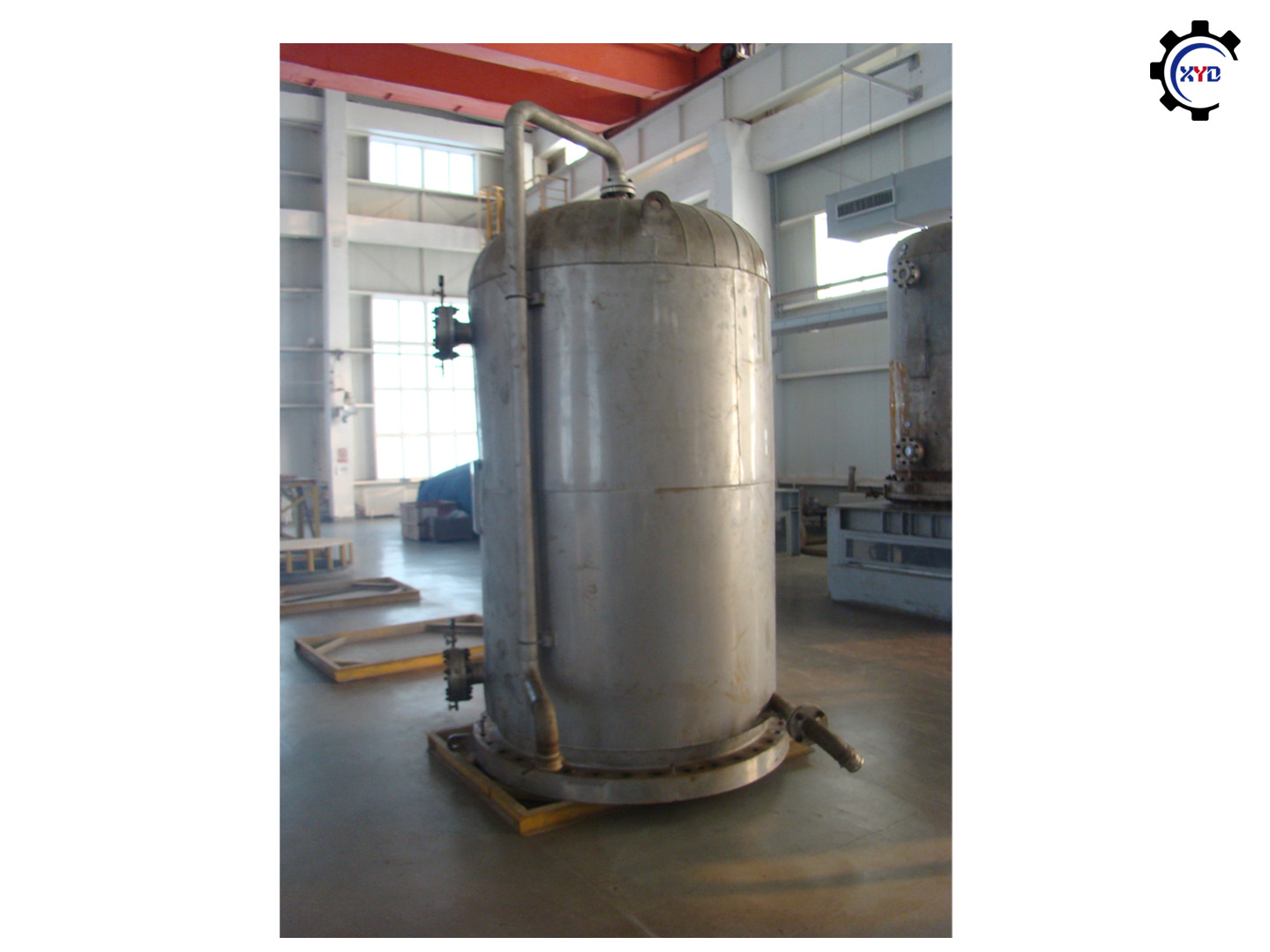

Suitable Workpieces	Reaction tanks, vertical vessels (inner shell + dish end)
Workpiece Size	Φ1500–3500mm × max height 4000mm
Polishing Media	Flap wheel, cloth wheel, and other consumables

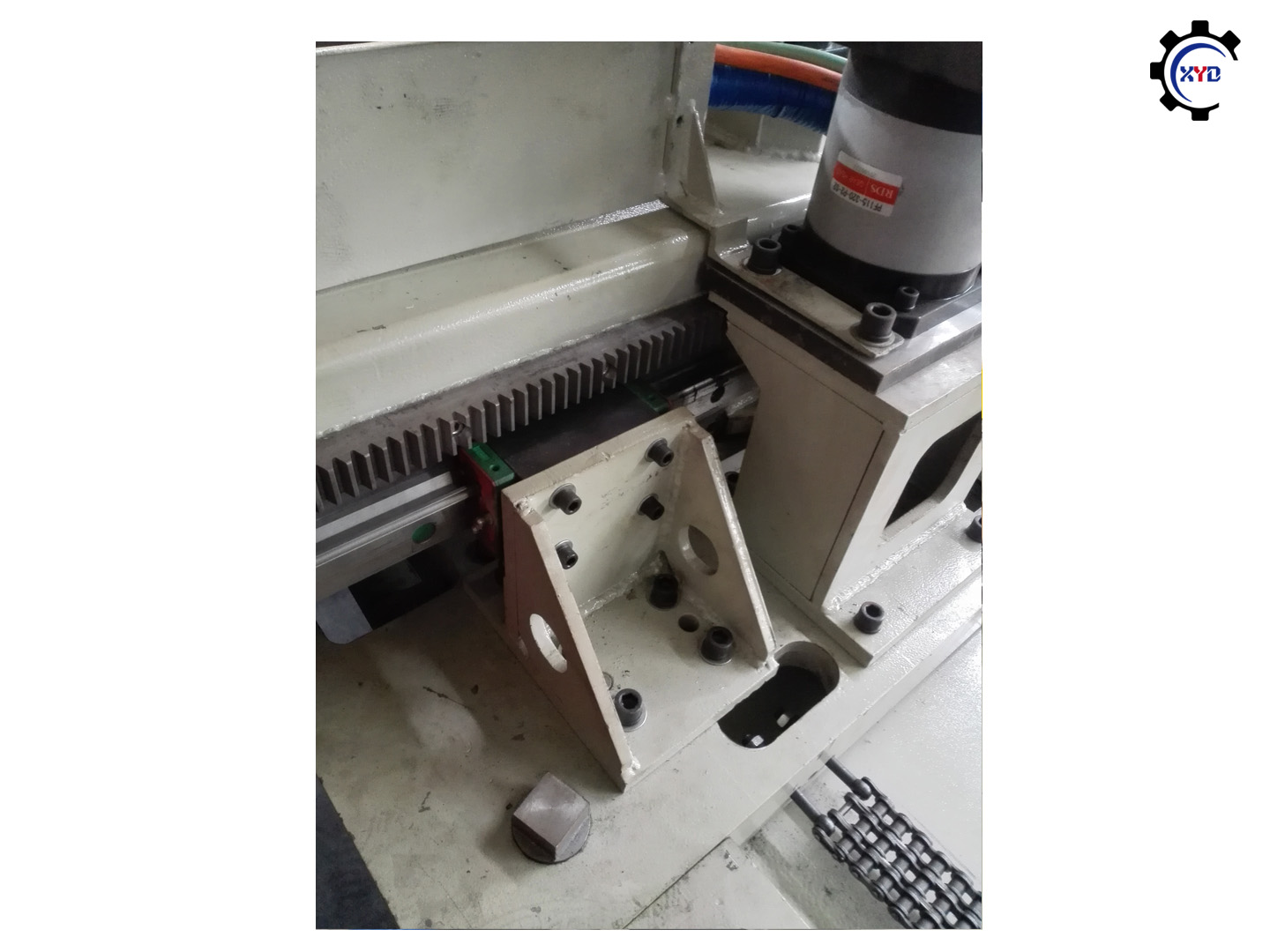

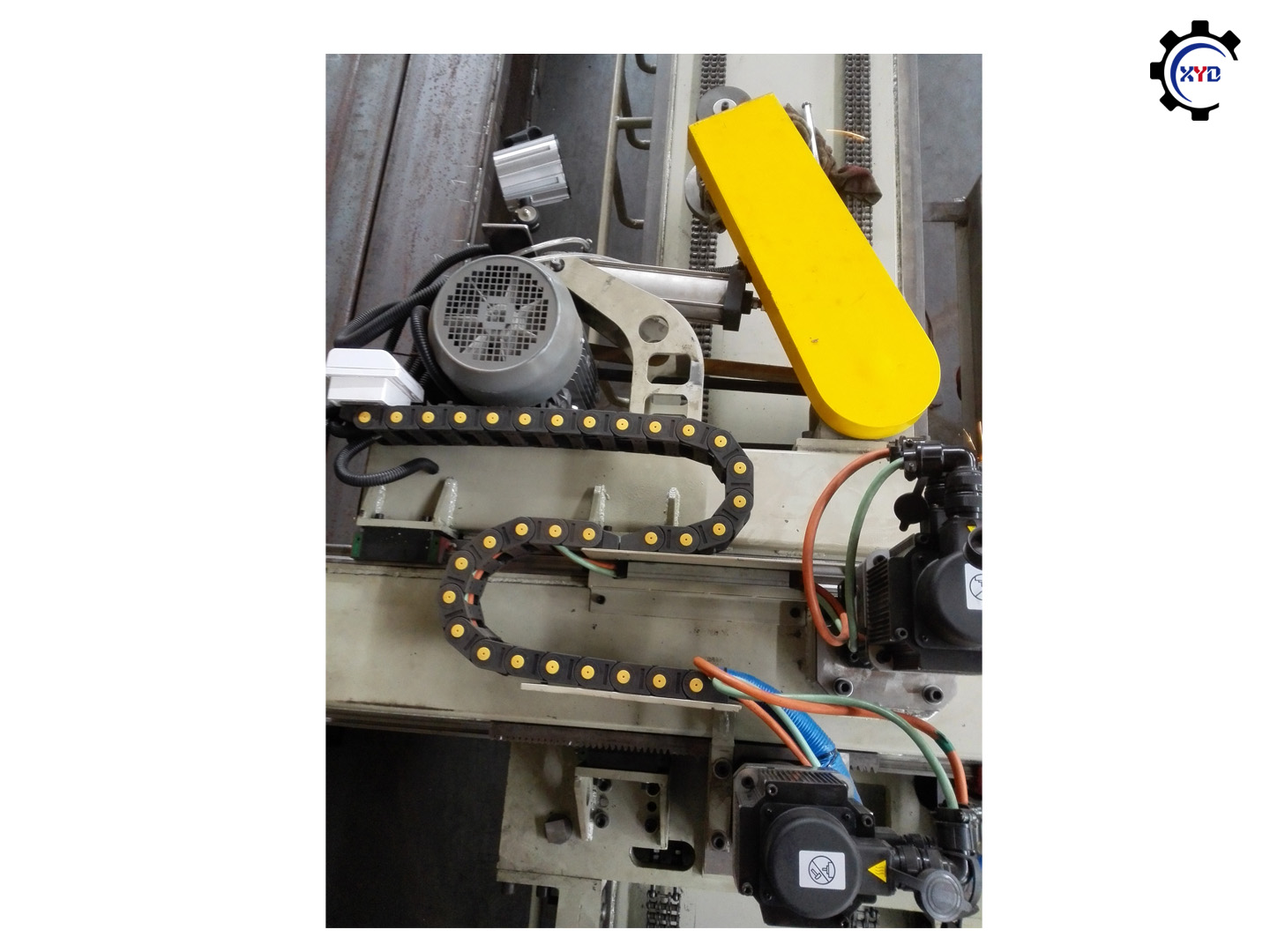

Motion System	Frequency-controlled column rotation + 3D adjustable head
Safety Features	Full enclosure with emergency stop and dust collection ports

4. Application Scope

Industry Sector	Typical Workpieces
Pharmaceutical	Aseptic tanks, bioreactors
Chemical Equipment	Pressure reactors, jacketed vertical vessels
Environmental Sector	Sludge storage tanks, chemical waste containers
Insulated Containers	Inner wall polishing of large, stationary, jacketed tanks

Core Value: Effectively solves polishing issues for large vertical vessels that cannot be rotated or laid down, particularly in clean and precision-demanding industries.
