Dished end polishing machine -1300

This CNC external cylindrical polishing machine is specially designed for metal workpieces with a diameter range of 640–1300 mm, height ≤ 300 mm, and weight ≤ 200 kg, suitable for 06Cr19Ni10 stainless steel and other materials. By utilizing the friction between the grinding wheel and the workpiece surface, it effectively improves surface roughness, achieving a polishing accuracy of Ra ≤ 0.2 μm. With CNC programming control, the machine delivers stable operation, high efficiency, and is widely used in advanced equipment manufacturing and metal surface finishing industries.

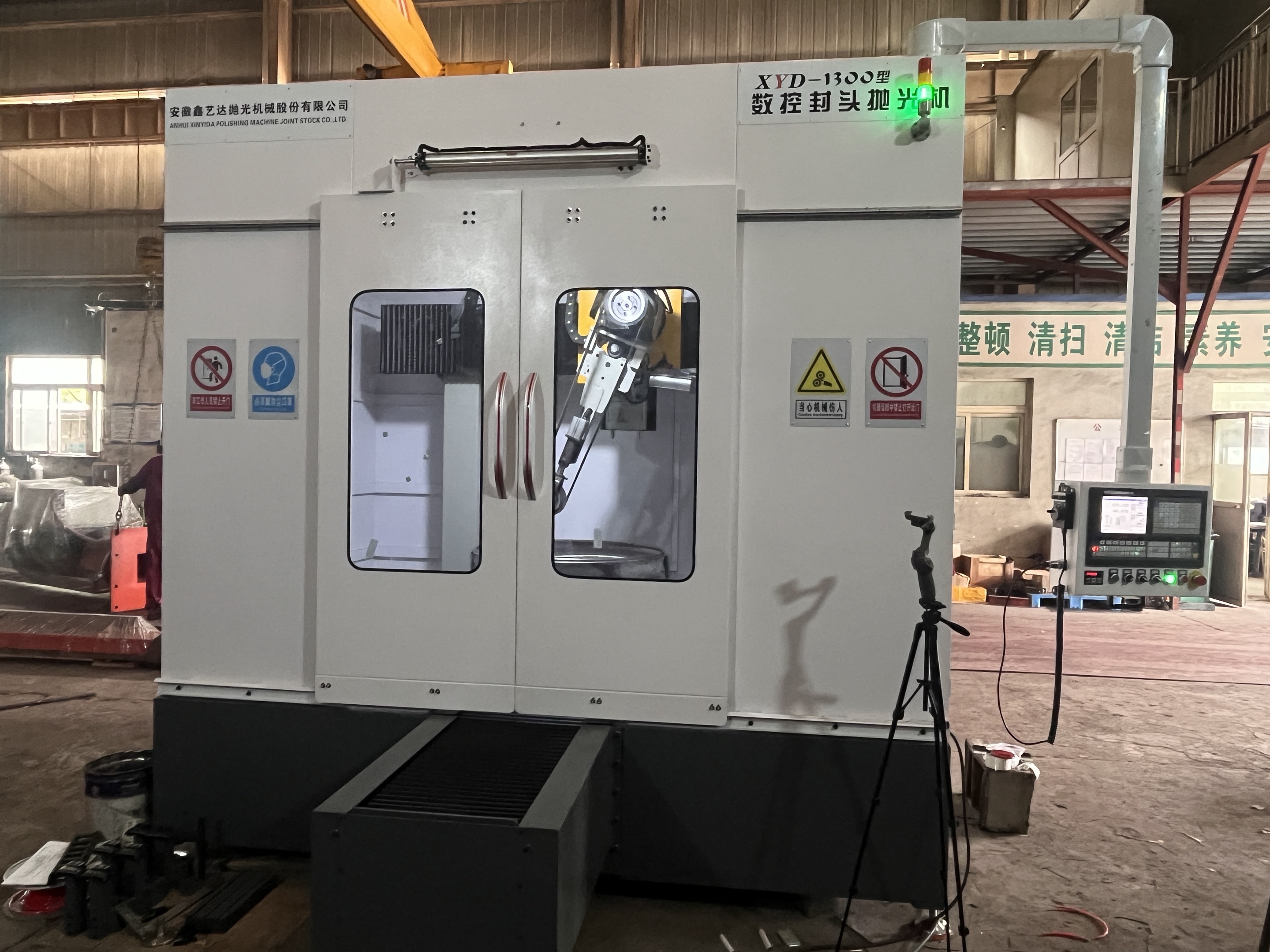

1300MM CNC dished end polishing machine XYD-CNC-1300

Consult

Introduction
Video

1. Product Overview

This CNC external cylindrical polishing machine is specially designed for metal workpieces with a diameter range of 640–1300 mm, height ≤ 300 mm, and weight ≤ 200 kg, suitable for 06Cr19Ni10 stainless steel and other materials.
By utilizing the friction between the grinding wheel and the workpiece surface, it effectively improves surface roughness, achieving a polishing accuracy of Ra ≤ 0.2 μm.
With CNC programming control, the machine delivers stable operation, high efficiency, and is widely used in advanced equipment manufacturing and metal surface finishing industries.

2. Product Features

Feature	Function & Advantages
CNC Programming Polishing	Equipped with GUGO CNC system, supports coordinate programming and two-axis linkage for easy and efficient operation.

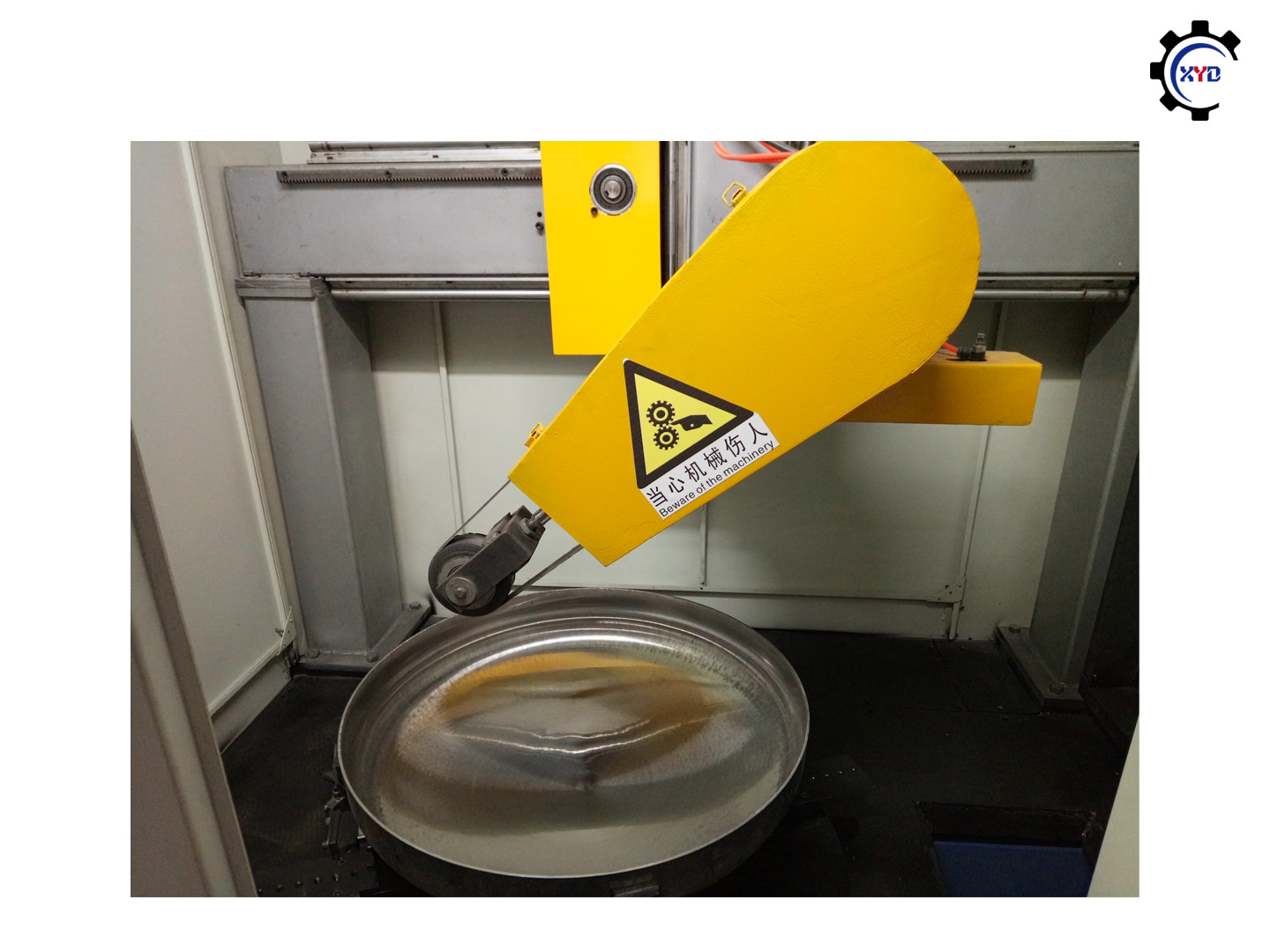

Single Polishing Head	Compact head design with automatic consumable wear compensation via CNC program, reducing maintenance costs.
High-Precision Processing	Achieves surface roughness up to Ra ≤ 0.2 μm, meeting high-end finishing requirements.

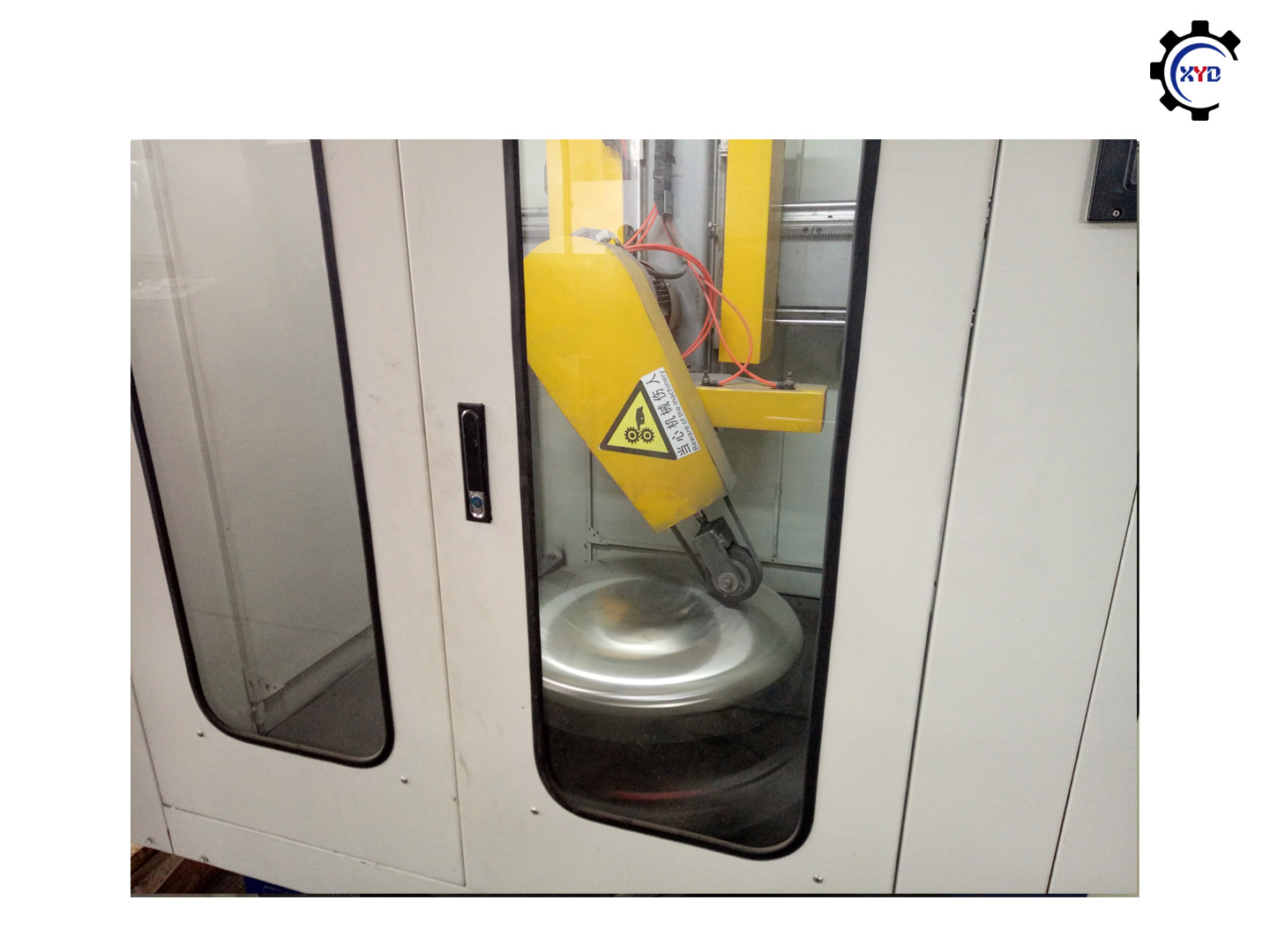

Fully Enclosed Protection	Visual safety enclosure for dust-proof operation and operator protection.
Optional Dust Collection	Reduces dust pollution, improves working environment, and meets environmental standards.

3. Technical Parameters

Item	Specification
Workpiece Diameter Range	640–1300 mm
Workpiece Height	≤ 300 mm
Workpiece Weight	≤ 200 kg
Material	06Cr19Ni10 (Stainless Steel)
Surface Roughness	Ra ≤ 0.2 μm
Control System	CNC GUGO Control System
Polishing Head Type	Single head
Motion Control	Two-axis linkage
Machine Components	Main machine, polishing head, workpiece rotary table, control cabinet, full enclosure, optional dust collector
